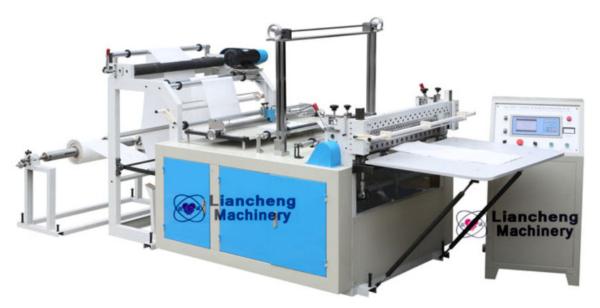

LCQ600 Sheet Cutting Machine cross cutting machine paper plastic film printed or unprint

Ask Lasest Price
Brand Name :	Best
Model Number :	LCQ600
Certification :	CE
Price :	0
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	5sets/month
Delivery Time :	20-30 working days

Add to Cart

Product Details
Company Profile

LCQ600 Sheet Cutting Machine cross cutting machine paper plastic film printed or unprint

Usage characteristic

This machine is suitable for cutting roll material such as paper, plastic film(printed or unprinted), shrink film, various logo or mark roll material & etc.

Technical data
Model	600	800	1000
Max. Cutting Width	550 mm	750 mm	950 mm
Cutting Length Range	100-1500 mm	100-1500 mm	100-1500 mm
Max. Unwinding Diameter	800 mm	800 mm	800 mm
Cutting Precision	±0.2 mm	±0.2 mm	±0.2 mm
Paper Thickness Range	25-180 gsm	35-180 gsm	35-180 gsm
Cutting Speed	20-150 pcs/min	20-150 pcs/min	20-150 pcs/min
Power Supply	220 V	220 V	380 V
Total Power	1.5 kw	2.2 kw	2.7 kw
Machine Weight	500 kg	600 kg	750 kg
Machine Dimension	260012001300 mm	260014001300 mm	260016001300 mm

Model	1200	1400
Max. Cutting Width	1150 mm	1250 mm
Cutting Length Range	100-1500 mm	100-1500 mm
Max. Unwinding Diameter	800 mm	800 mm
Cutting Precision	±0.2 mm	±0.2 mm
Paper Thickness Range	35-180 gsm	70-180 gsm
Cutting Speed	20-150 pcs/min	20-120 pcs/min
Power Supply	380 V	380 V
Total Power	3 kw	3.8 kw
Machine Weight	850 kg	950 kg
Machine Dimension	260018001300mm	260020001300mm

Features

1. Micro-computer control, stepping motor fix length.

2. Feeding press roller, photocell tracking.

3. Main unit frequency speed control, automatic counter, automatic alarming and stopping system.

4. High quality flat blade cutting.

5. Main frame is made of channel steel, steel plate.
